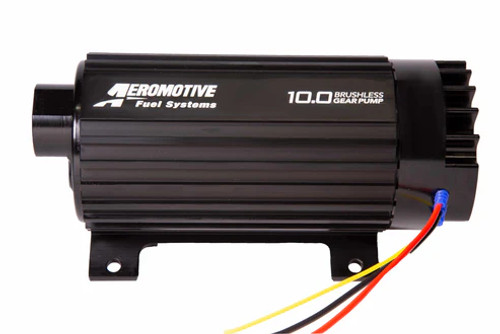

Aeromotive Brushless Fuel Pump – High-Performance, High-Flow
Push your build to the limit with Aeromotive’s brushless fuel pump – designed for ultra-high horsepower applications running gas, E85, or methanol. Compact, reliable, and efficient, it's the perfect solution for serious street or race cars.
⚙️ Horsepower Support (Flywheel HP)
Fuel Injected Engines:
-
Up to 6,900 HP on Gas (Naturally Aspirated)
-
Up to 4,900 HP on Gas (Forced Induction)
-
Up to 4,830 HP on E85 (Naturally Aspirated)
-
Up to 3,430 HP on E85 (Forced Induction)
-
Up to 2,415 HP on Methanol (Naturally Aspirated)
-
Up to 1,715 HP on Methanol (Forced Induction)
Carbureted Engines:
-
Up to 7,600 HP on Gas (Naturally Aspirated)
-
Up to 5,500 HP on Gas (Forced Induction)
-
Up to 5,300 HP on E85 (Naturally Aspirated)
-
Up to 3,850 HP on E85 (Forced Induction)
-
Up to 2,650 HP on Methanol (Naturally Aspirated)
-
Up to 1,925 HP on Methanol (Forced Induction)
⚠️ When using E85, reduce maximum horsepower ratings by 30%.
? Key Features
-
Lightweight, compact brushless design
-
Integral external controller for clean install and cooler fuel temps
-
New spur-gear pumping mechanism
-
Continuous 60 PSI pressure, 100 PSI peak (base + boost)
-
Lower current draw at high EFI pressures
-
Compatible with Gas, E85, and Methanol
-
Designed for 12–16V DC power systems (not compatible with 16–18V charging without step-down)
-
ORB-12 inlet / ORB-10 outlet for maximum flow
-
Optional True Variable Speed Controller (0–5V analog input) for smart fuel demand control
⚠️ Important Compatibility Notes
-
Not for use with pulse-modulated systems or speed controllers
-
Not legal for use on emission-controlled vehicles unless used as an OEM-spec replacement
-
Requires regulated power supply—do not use with unregulated 16V systems
