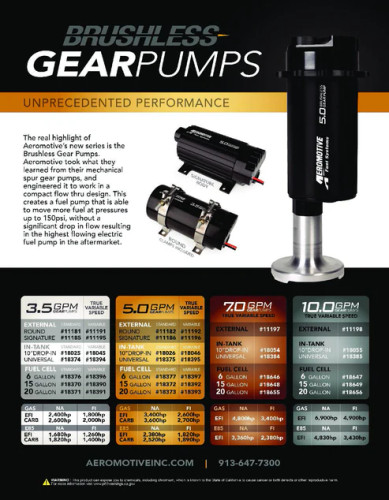

Aeromotive 7.0 GPM Brushless Fuel Pump w/ True Variable Speed Controller (P/N 11197)
Ground-Shaking Performance – Advanced Technology
Take fuel delivery to the next level with Aeromotive’s 7.0 GPM Brushless Fuel Pump, designed for ultra-high horsepower builds and equipped with a True Variable Speed Controller. Ideal for EFI or carbureted setups running gasoline, E85, or methanol, this pump delivers massive flow with unmatched efficiency and reliability.
⚙️ Horsepower Support (Flywheel HP)
Fuel Injected Engines
-
Up to 4,800 HP on Gas (Naturally Aspirated)
-
Up to 3,400 HP on Gas (Forced Induction)
-
Up to 3,360 HP on E85 (Naturally Aspirated)
-
Up to 2,380 HP on E85 (Forced Induction)
-
Up to 1,680 HP on Methanol (Naturally Aspirated)
-
Up to 1,190 HP on Methanol (Forced Induction)
Carbureted Engines
-
Up to 5,400 HP on Gas (Naturally Aspirated)
-
Up to 3,800 HP on Gas (Forced Induction)
-
Up to 3,780 HP on E85 (Naturally Aspirated)
-
Up to 2,400 HP on E85 (Forced Induction)
-
Up to 1,890 HP on Methanol (Naturally Aspirated)
-
Up to 1,200 HP on Methanol (Forced Induction)
⚠️ When using E85, reduce maximum horsepower ratings by 30%.
? Key Features
-
7.0 GPM high-flow output for extreme power applications
-
Brushless motor technology with extended life and lower current draw
-
True Variable Speed Controller (0–5V input) for dynamic fuel demand control
-
60 PSI continuous pressure / 100 PSI peak base + boost
-
New spur-gear pumping mechanism for consistent flow
-
Lightweight design – smaller and more efficient than traditional external pumps
-
Built-in external brushless controller for cleaner install and better cooling
-
Durable with methanol and ethanol fuels
-
ORB-12 inlet / ORB-10 outlet for maximum flow
⚠️ Important Notes
-
Requires 12V–16V DC power supply
-
Not compatible with pulse-modulated systems or speed controllers
-
Not legal for use on emission-controlled vehicles unless used as a direct OEM-spec replacement
-
Do not use with unregulated 16V charging systems (16–18V range) – use a step-down regulator if necessary
