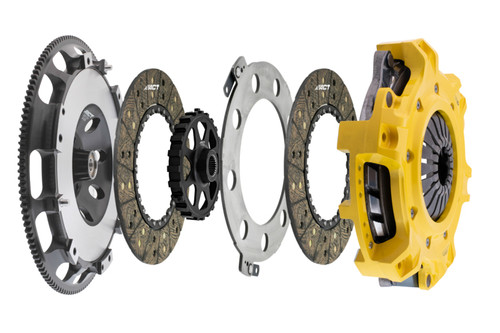

T3S-F17 Mod-Twin 10.5 XX Rigid Street Kit blends smooth but positive engagement with quick shifting for high-powered street machines by combining twice the organic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a consistent pedal feel requiring moderate effort. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive Chromoly hub, which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.
Features and Benefits
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Product Details
- Generic Primary
- Primary
- Primary
- Primary
- Primary
Part Number: actT3S-F17

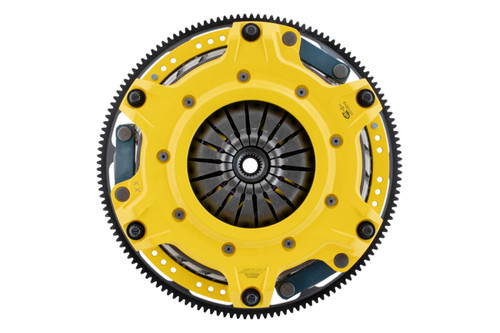

Description: ACT 24-26 Ford Mustang GT Mod-Twin 10.5 XX Rigid Street
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: Yes
Pilot Bearing Included: Yes
Clutch Master Cylinder Included: No
Product Weight (lbs.): 45.0
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
SFI: 1.2
Title: ACT Mod-Twin 10.5 XX Rigid Street
Torque Capacity (ft/lbs.): 1169
Torque Capacity Over OE: 93%
Flywheel Included: Yes
Pilot Bushing Included: No
Pressure Plate Type: Maxx Xtreme
Release Bearing Included: No
Clutch Disc Diameter: 267
Disc Material: Organic
Input Spline Quantity: 23
Input Shaft Diameter: 1
Alignment Tool Included: Yes
Disc Type Sprung Solid: Solid
Pressure Plate Bolts Included: No
Grease Included: Yes
Fits: 2024-2026 Ford Mustang (see fitment details).
