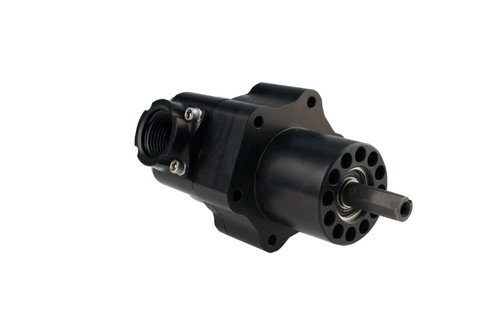

Aeromotive 12-Series Belt Drive Mechanical Pump

P/N 11115: 12 Series Belt Drive Fuel Pump
12-GPM Belt Drive Mechanical Fuel Pump

Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low pressure applications.

• Flows up to 12 GPM


• Naturally Aspirated EFI:



  • 6,000+ FWHP on gas


  • Up to 3,000 FWHP on methanol






• Forced Induction EFI:



  • 5,000+ FWHP on gas


  • Up to 2,000 FWHP on methanol






• High efficiency, Gerotor pumping mechanism.


• Tough, Type III hard coat anodized body.


• CNC Machined from 6061 T6 aircraft aluminum.


• Includes both 1.25' barb and AN-16 Male inlet.


• ORB-12 female outlet port.

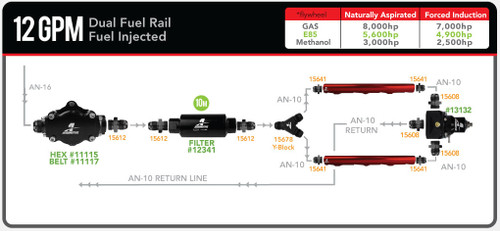

EFI applications require high-flow return style regulators:
P/N 13132,  13133,  13137 or  13113.

Sold Separately:
Mounting Bracket: P/N 11706
Cog Pulley: P/N 21109.
Electric Priming/Starting Kit:  P/N 17301
