P/N 17170: EFI Returnless - Phantom 340 & Installation Kit

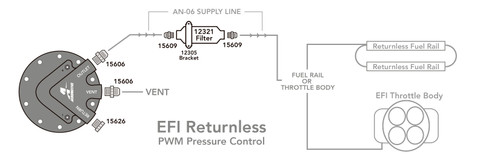

These new Phantom EFI Fuel Systems include all main fuel system components required to create a true, pulse-modulated, "return-less" EFI fuel system. Specifically engineered for engines with today's Hot New Carb to EFI Throttle Body Conversion Systems equipped with a fuel pressure transducer and an ECU capable of controlling fuel pressure with pulse modulation technology. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Includes the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. Each system includes Aeromotive billet high-flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings
For "return-less style" throttle body EFI conversion systems. Suitable for naturally aspirated EFI engines producing from 300- 500 flywheel Horse Power. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply line, sold separately and not included.
This kit contains the following parts:
1ea p/n 18688 Phantom 340
1ea p/n 12321 Filter 10 micron Paper
1ea p/n 12305 Filter Bracket
2 ea p/n 15606 AN-06 ORB to AN-06 flare
2 ea p/n 15609 AN-10 ORB to AN-06 flare
1ea p/n 15626 AN-06 Port Plug
