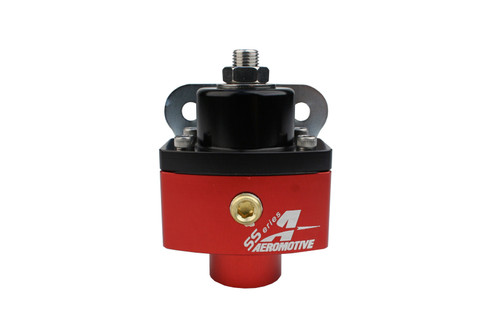

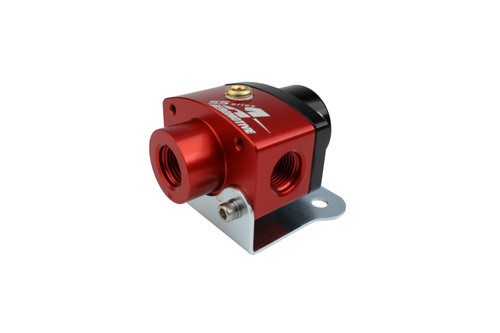

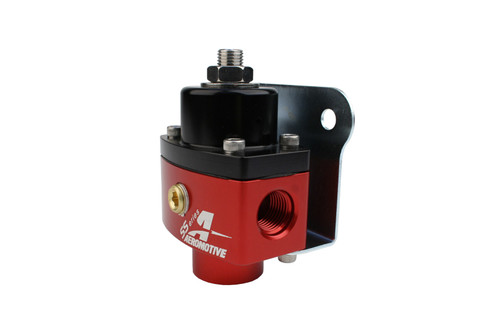

Aeromotive SS-Series Carbureted Dead-Head Fuel Pressure Regulator with ORB-06 Ports

P/N 13201 SS-Series ORB-06 Carb Regulator
Dead-Head Regulator for up to 750 FWHP on gas.

Specifically designed for carbureted street or racing engines on gasoline, the SS-Series adjustable regulator offers higher flow, quicker response and less pressure creep than competing two-port designs. Popular in circle track applications up to and including NASCAR® level horsepower and as a dedicated nitrous regulator.  Not rated for alcohol fuels, ethanol or methanol.

• Adjustable from 5-10 PSI.


• P/N 13201 provides ORB-06 inlet and outlet ports.


• Dedicated 1/8" NPT gauge port.


• Regulator re-seats when the needle and seat closes, preventing pressure creep.


• Mounting bracket included.


• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.


• Not rated for alcohol fuels, ethanol or methanol.


• Available in kit form with port fittings, braided line and hose ends for Holley style Carbs under P/N 17120.


• Fitting only kits available:
  • P/N 15108 : 3x ORB-06 to AN-06 port fittings.

• • P/N 15203 : 3x ORB-06 to AN-08 port fittings.
