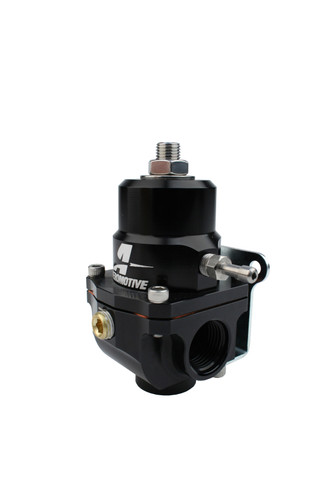

Aeromotive X1 Series Pro Return Style EFI Fuel Pressure Regulator

P/N 13305 X1 EFI Pro Return Style Regulator
EFI return style Regulator for Return Style Systems

• Base fuel pressure adjustable from 35-75 PSI.


• Vacuum/Boost reference capability.


• 1:1 rising rate for forced induction engines.


• Gasoline, ethanol, alcohol and diesel compatible.

• 2 - ORB -08 inlet/outlet ports on the sides.


• 1 - ORB-08 return port on the bottom port.


• 1 - 1/8" NPT Gauge Port with plug.


• 1/16" NPT Boost Port with 5/32" hose barb.


• Compatible with X1 EFI Conversion kit.


• Compatible with X1 Carb Conversion kit.


• 0.313" return style with matching spring and poppet.


• Handles up to 250 GPH with AN-08 return line.


• Mounting bracket included (not shown).


• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring

P/N 13014 150 GPH 0.313" Carb Conversion Kit
P/N 13013 150 GPH 0.188" EFI Conversion Kit
P/N 13015 250 GPH 0.313" EFI Service Kit
