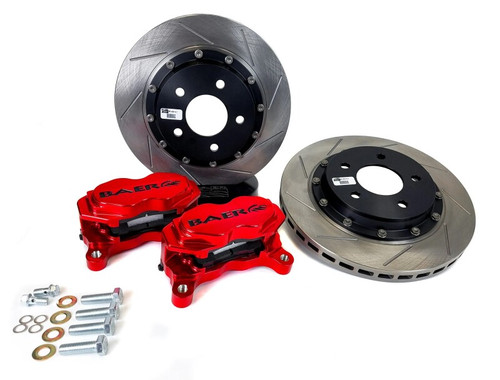

This system features the 4-piston, S4 caliper mounted to a 12" x 1.100" 2 piece, slotted rotor and uses the popular DR1/HB100 pad type. The slot only rotors are mounted to 6061 billet aluminum hats using NAS high grade stainless hardware and come pre-assembled. All additional mounting hardware is also included. The SS4+ 2.0 Deep Stage system was designed to allow consumers to push the limits at the strip, yet still have a system that can be driven on the street. The SS4+ 2.0 Deep Stage system fits many 15in and larger wheels. NOTE: This system comes equipped with a high friction pad that is optimized for drag race applications. These pads often produce more dust and noise. Drag Race systems come standard in Clear and Fire Red caliper colors.
Features and Benefits
- All the benefits of our larger brake systems just in a smaller package to fit 15" wheels
- Fits most all beadlock wheels
- Designed specifically for heavy, fast cars, Can be used on the street
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- 2-Piece Slot Only Rotor w/Billet Aluminum Hat
Product Details
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
Part Number: bae4261560FR
Description: Baer Brakes 12" SS4+ Deep Stage 2.0 Front Brake Kit, Fire Red, Slot
Applications: Ford Mustang 15-23
Axle: Front
Brand: Baer Brakes
Caliper: S4
Caliper Color: Fire Red
Category: Brake
Disc Brake Caliper (Front) Piston Quantity: 4
Disc Brake Caliper (Front) Type: Fixed

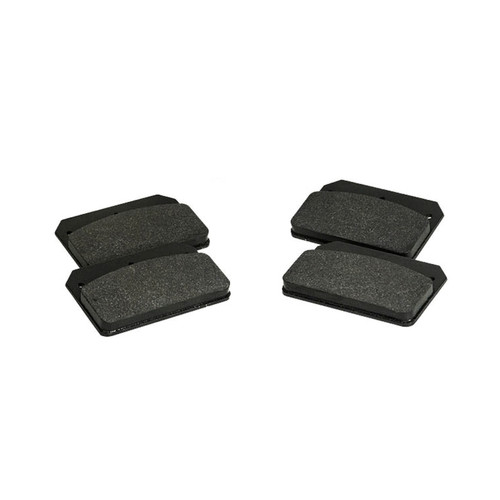

Disc Brake Pad FMSI Number: DR1
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 12.000
Emission Code: 6
Export Description: Brake Components
Grade Type: Performance
Hose Material: Hoses Not Included
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 15
part type: Disc Brake Upgrade Kit
Product Line: SS4+ Deep Stage Front
Product Type: 12 Inch SS4+ Deep Stage Front Brake Kit
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
Rotor Thickness: 1.100
Sub Category: Service Kits
Surface Type: Slotted
System Notes: NOTE: This system comes equipped with a high friction pad that is optimized for drag race applications. These pads often produce more dust and noise.
Template: S096E
Title: SS4+ Deep Stage Front
Wheel Lug/Bolt Pattern: 5x4.50
Fits: 2015-2023 Ford Mustang (see fitment details).
