CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Mustang running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
Features and Benefits
- 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology

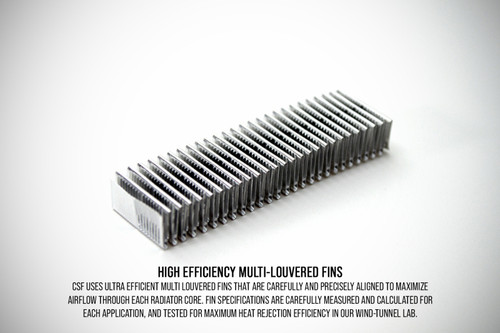

- Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined "Quick-Connect" Inlet/Outlet Connections
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- All-Aluminum Race Style Drain Plug
- Smooth Satin Finish
- "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
Product Details
- Primary
- Primary
- Primary
- Generic Primary
- Generic Primary
- Generic Primary
Part Number: csf7073

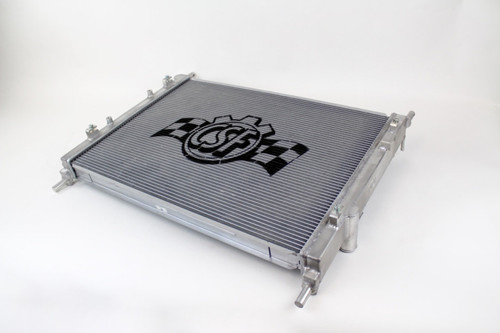

Description: CSF 2015+ Ford Mustang GT 5.0L Radiator
Title: S550 Ford Mustang GT / Bullitt / GT350 / V6 All-Aluminum Radiator
Core Material: Aluminum
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Type: Mounts with OE Hardware
Tank Material: Aluminum
Finish/Color: Satin
Installation Type: Drop-In Fit Installation
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 25.3125 in.
Core Row Quantity: 2
Core Thickness: 1.625 in.
Core Width: 19.6875 in.
Down Flow Or Cross Flow Type: Cross Flow
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 1.5 in.
Inlet Location: Top Right
Mounting Hardware Included: No
Outlet Connector Type: Slip On
Outlet Diameter: 1.5 in.
Outlet Location: Bottom Left
Prop 65 Yes/No: No
Radiator Cap Included: No
Thermostat Included: No
Fits: 2015-2021 Ford Mustang (see fitment details).
