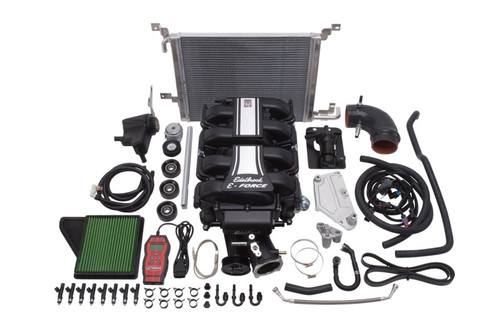

The Edelbrock supercharger Stage 1 Street system part #1588 for 2011-14 Mustangs increases the performance of your Coyote 5.0L 4V engine to 559 horsepower and 503 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1588 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Features and Benefits
- Little To No Decrease In Fuel Economy
Product Details
- Primary
- Primary
- Primary
- Primary
- Primary
- Primary
- Generic Primary
- Generic Primary
- Primary
- Primary
- Primary
- Primary
- Primary
- Generic Primary
Part Number: ede1588
Description: E-Force Stage-1 Street Systems Supercharger
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: This product can expose you to Chrome; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65 Message: WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Vehicle Model: Mustang
9040: D-215-89
Pulley Belt Width: 6-Rib
Quantity: Kit
Rotor Type: Eaton TVS 2300
System Type: Stage 1 - Street System
Tensioner Included: Yes
Air Filter Included: Yes
Calibration: Yes
Finish: Black Powder Coated
Fuel Injector Type: 50
Harmonic Balancer Diameter: 6.67
Hose Included: Yes
Maximum Horsepower: 559
Maximum Torque: 503
Outside Pulley Diameter: 3.75
Mounting Hardware Included: Yes
Gasket Or Seal Included: Yes
Universal Or Specific Fit: Specific
Mounting Bracket Included: Yes
Internal Step Up: Yes
Maximum Pressure Reading: 4.75
Center Housing Cooling Type: Intercooler
Maximum Boost Pressure: 4.75
Housing Material: Cast Aluminum
Oil Capacity: 150
Fits: 2011-2014 Ford Mustang (see fitment details).
