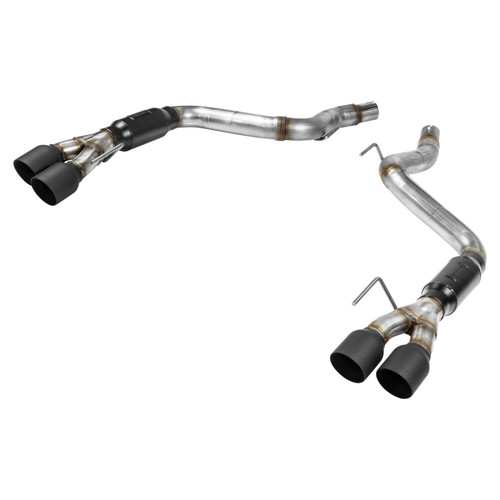

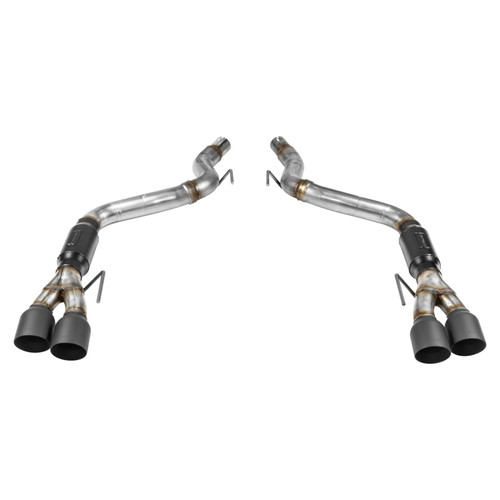

The Flowmaster® Outlaw Axle-back exhaust system is specifically designed for the 2018-2023 Ford Mustang GT coupes and convertibles with the 5.0L engine. This system features a pair of race-proven Outlaw® Series mufflers for an aggressive exterior sound level with noticeable interior sound. The system utilizes 3.00-inch mandrel-bent 409S stainless steel tubing, utilizes the factory hanger locations for an easy installation, and is finished off with quad 4.00-inch black ceramic coated tips for an aggressive look that matches the attitude of the sound. This axle-back system retains the factory resonator mid-pipe. For more sound and power, check out our Scavenger® Series no resonator X-Pipe kit part #817817. This system is designed for vehicles without active exhaust valves and includes all the necessary parts, hardware and installation instructions.
Features and Benefits
- Large 4.00-inch Black Ceramic Coated Tips
- Aggressive Race-proven Outlaw Mufflers
- Dyno-tuned for Maximum Performance
- Full Stainless Steel Construction
- Uses Factory Hanger Locations
- Lifetime Limited Warranty
- Easy Installation
Product Details
- Primary
- Primary
- Primary
- Primary
- Primary
- Primary
- Generic Primary
Part Number: flo817806
Description: Flowmaster Outlaw Axle-back Exhaust System
Brand: Flowmaster
California Proposition 65: Yes
California Proposition 65 Chemical Name: Chromium (hexavalent compounds)
CARB (California) Compliant: Yes
Catalytic Converter Quantity: 0
Category: Exhaust
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Outlaw
Exhaust Tip Color: Black
Exhaust Tip Connection: Welded
Exhaust Tip Cut: Angled
Exhaust Tip Diameter: 4.00
Exhaust Tip Edge: Angle Cut
Exhaust Tip Finish: Black Ceramic Coating
Exhaust Tip Intercooled: No
Exhaust Tip Length: 5.25
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 4
Exhaust Tip Resonated: No
Exhaust Tip Shape: Round
Exhaust Tip Wall: Double Wall
Exit Style: Dual Out Rear
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Type: Clamp-On
Main Piping Diameter: 3.00
Mount Type: Uses Factory Hangers
Mounting Bracket Included: No
Muffler (Left) Body Height: 4.00
Muffler (Left) Body Length: 6.50
Muffler (Left) Body Width: 4.00
Muffler (Left) Type: Reflection
Muffler (Right) Body Height: 4.00
Muffler (Right) Body Length: 6.50
Muffler (Right) Body Width: 4.00
Muffler (Right) Type: Reflection
Muffler Body Diameter: 4.00
Muffler Body Height: 4.00
Muffler Body Length: 6.50
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Round
Muffler Body Width: 4.00
Muffler Color: Black
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 3.00
Muffler Inlet Location: Center
Muffler Inlet Outside Diameter: 3.13
Muffler Outlet Diameter: 3.00
Muffler Outlet Location: Center
Muffler Outlet Quantity: 1
Muffler Overall Length: 49.50
Muffler Part Number: Kit Only
Muffler Quantity: 2
Muffler Series: Outlaw
Muffler Type: Reflection
part type: Exhaust System
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Product Type: Exhaust System
Sound Level: Aggressive
Spring Bolt Kit Included: No
Sub Category: Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter: 3.00
Tail Pipe Quantity: 2
Tail Pipe Quantity: Dual
Tail Pipe Tapered Outlet: No
Tip Logo: Embossed
Type: Axle-back
Valve Included: No
Valve Type: Not Applicable
Warning: California Proposition 65
Catalytic Converter Included: No
Fits: 2018-2023 Ford Mustang (see fitment details).
