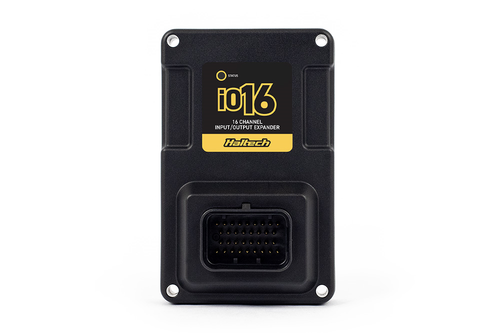

Haltech Nexus IO16 Input/Output Expander - 16 Channel

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.

Product Details

• Suits: Nexus ECU's/VCU's/Dashes Elite ECU's
• Includes: IO16 Expander, Mounting Hardware, and Quick Start Guide
• Notes: Not Compatible with Platinum Series ECU's

Inputs

6 x Analogue Voltage Inputs (AVI)

4 x Synchronised Pulsed Inputs (SPI)

Outputs

6 x Half Bridge Outputs (HBO)

WARNING – When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.

Others

Note: Any 5V and sensor ground pins can be paired when wiring sensors.
