VCU Overview

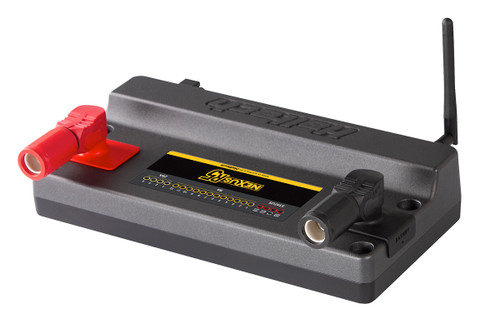

Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
Product Details
- Outputs: Up to 18 injector and 12 ignition
- Suits: Engines with up to 12 cylinders or up to 6 rotors. Racing applications where advanced race features, data logging and power management control is required.
- Includes: Nexus R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap.
VCU Features
Automatic Transmission Control
Specifications
| Analog Voltage Inputs (AVI) | 23 |
|---|
| Differential Engine Position Inputs | 2 (Trigger and Home) |
|---|
| Digital Pulsed Inputs (DPI) | 0 |
|---|
| Synchronized Pulsed Inputs (SPI) | 10 |
|---|
| Knock Sensor Inputs | 2 |
|---|
| On-board Wideband Controller | 2 x NTK/LSU 4.9 |
|---|
| Injection | 18 (peak and hold) |
|---|
| Ignition | 12 |
|---|
| Ignition Switch Input | 1 |
|---|
| Engine Control Relay output | 0 |
|---|
| Total Digital Pulsed Outputs (DPO) | 8 |
|---|
| Half Bridge Outputs (HBO) | 4 8A |
|---|
| On-Board PDM | YES |
|---|
| 25A High Current Outputs (HCO) | 4 |
|---|
| CAN Bus Networks | 3 |
|---|
| MAP sensor | External |
|---|
| Inertia / G-Sensor | YES |
|---|
| USB 2.0 | USB-C |
|---|
| Low Power Up via Cable | YES |
|---|
| Wi-Fi | YES |
|---|
| Compatible with Haltech Connect App | YES |
|---|
| Anti-Lag/Rotational Idle | YES |
|---|
| Boost Control | 4D Closed Loop |
|---|
| Closed Loop O2 Control | Dual |
|---|
| CO2 Control | YES |
|---|
| Drive-By-Wire Throttle | Dual |
|---|
| Engine Protection | Multi-Level |
|---|
| Flat Shift Support | Advanced |
|---|
| Flex Fuel | YES |
|---|
| Intake Air Bleed Control | YES |
|---|
| Knock Control | Dual |
|---|
| Launch Control | YES |
|---|
| Long Term Learning | Up to 4D |
|---|
| Nitrous Control Stages | Up to 6 |
|---|
| Race Timer | YES |
|---|
| Rolling Anti-Lag | YES |
|---|
| Shock Travel & Ride Height | YES |
|---|
| Torque Management (Driveshaft and Engine RPM Targeting) | YES |
|---|
| Traction Control | YES |
|---|
| Trans Brake | YES |
|---|
| Tuning Table Resolution | 32x32x8 4D |
|---|
| Variable Cam Control | Up to 4 |
|---|
| Onboard storage | 512MB |
|---|
