ECU Overview

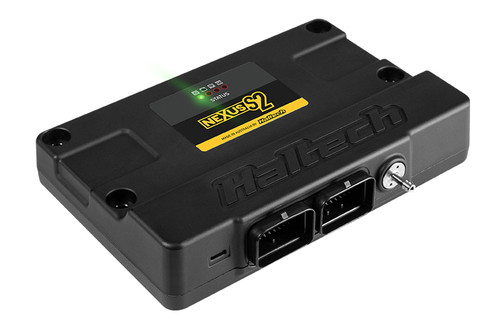

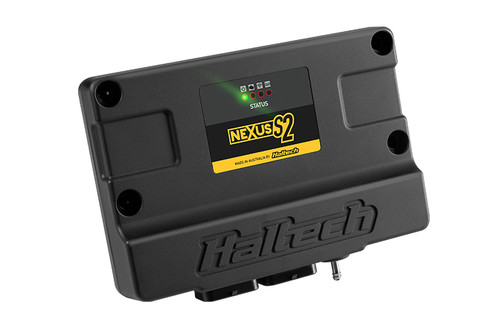

Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.
Product Details
- Suits: Engines with up to 4 cylinders or up to 2 rotors. Racing applications where advanced race features and data logging is required.
- Includes: Nexus S2 ECU, 4 x mounting bolts, USB-C Cable, USB-C dust cap, Quick Start Guide, Wiring Diagram.
ECU Features
Automatic Transmission Control
Specifications
| Analog Voltage Inputs (AVI) | 11 |
|---|
| Differential Engine Position Inputs | 2 (Trigger and Home) |
|---|
| Digital Pulsed Inputs (DPI) | 0 |
|---|
| Synchronized Pulsed Inputs (SPI) | 6 |
|---|
| Knock Sensor Inputs | 2 |
|---|
| On-board Wideband Controller | 1 x NTK/LSU 4.9 |
|---|
| Injection | 4 (peak and hold) |
|---|
| Ignition | 4 |
|---|
| Ignition Switch Input | 1 |
|---|
| Engine Control Relay output | 1 |
|---|
| Total Digital Pulsed Outputs (DPO) | 6 |
|---|
| Half Bridge Outputs (HBO) | 4 8A |
|---|
| On-Board PDM | NO |
|---|
| 25A High Current Outputs (HCO) | 0 |
|---|
| CAN Bus Networks | 2 |
|---|
| MAP sensor | Internal (4 BAR) |
|---|
| Inertia / G-Sensor | NO |
|---|
| USB 2.0 | USB-C |
|---|
| Low Power Up via Cable | YES |
|---|
| Wi-Fi | YES |
|---|
| Compatible with Haltech Connect App | YES |
|---|
| Anti-Lag/Rotational Idle | YES |
|---|
| Boost Control | 4D Closed Loop |
|---|
| Closed Loop O2 Control | Dual |
|---|
| CO2 Control | YES |
|---|
| Drive-By-Wire Throttle | Dual |
|---|
| Engine Protection | Multi-Level |
|---|
| Flat Shift Support | Advanced |
|---|
| Flex Fuel | YES |
|---|
| Intake Air Bleed Control | YES |
|---|
| Knock Control | Dual |
|---|
| Launch Control | YES |
|---|
| Long Term Learning | Up to 4D |
|---|
| Nitrous Control Stages | Up to 6 |
|---|
| Race Timer | YES |
|---|
| Rolling Anti-Lag | YES |
|---|
| Shock Travel & Ride Height | YES |
|---|
| Torque Management (Driveshaft and Engine RPM Targeting) | YES |
|---|
| Traction Control | YES |
|---|
| Trans Brake | YES |
|---|
| Tuning Table Resolution | 32x32x8 4D |
|---|
| Variable Cam Control | Up to 4 |
|---|
| Onboard storage | 128MB |
|---|
