Dash Overview

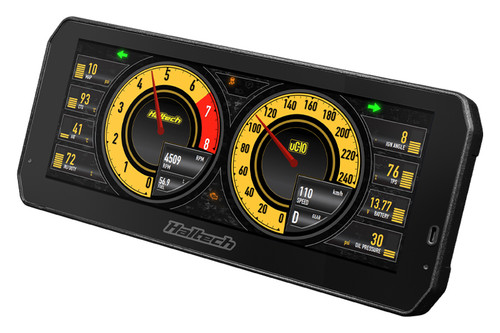

Take full control of your vehicle's data with the Haltech uC-10 Display Dash. Featuring a crisp, clear, and full-colour screen, the uC-10 display is now fully customisable using Haltech's powerful and intuitive NSP software. Allowing you to design your own screen layouts, arrange gauges, and display the data you want to see, exactly how you want to see it.
Versatility is central to the uC-10. It offers wide compatibility with Haltech CAN, OBD2, and a host of popular aftermarket ECUs, or it can be wired in as a complete stand-alone unit. This ensures seamless integration into a wide range of vehicles and setups. The uC-10 also offers extensive I/O capacity, making it an ideal central data hub or an I/O expander in an existing Haltech environment.
Full Screen Customisation:
Design and configure your own display layouts with Haltech's NSP software.
Broad Compatibility:
Haltech CAN and OBDII ready - (Optional OBDII to CAN cable required for OBDII Plug and Play compatibility (HT-135003)
Plug'n'Play compatible with the following aftermarket ECU brands:
Display:
Full-colour, optically-bonded TFT screen with a 1280 x 480 resolution and 600+ lumens.
Viewing Angle:
70-degree minimum viewing angle (vertical and horizontal).
Protection:
IP64 rated (Dust-tight and protected against water splashes).
Data Logging:
512MB of on-board looped data logging.
Odometer:
6-digit odometer.
Inputs & Outputs:
Sensors:
2 x Ambient light sensors.
Product Details
- Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following generic aftermarket ECU protocols: Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

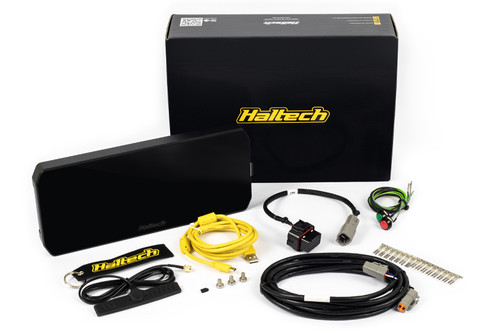

- Includes: 1 x Haltech uC-10 Digital Dash, 1 x 34P connector - same as HT-131001, 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in), 1 x USB-C cable, 3 x M5 x 8mm mounting screws, 2 x Momentary switches, pre-terminated 800mm 22AWG Cable, 1 x Glass Mount Wi-Fi antenna (Wi-Fi 2.4GHz), 1 x Haltech fabric keytag, Quick Start Guide, Haltech stickers.
Specifications
| Universal | Yes |
|---|
| Display Size | 10-inch, optically bonded overlay |
|---|
| Resolution | 1280x480 |
|---|
| Viewing Angle | 70° Minimum (vertical and horizontal) |
|---|
| Luminance | 600+ lumens (dimmable) |
|---|
| Dimensions | 291.2mm x 126.0mm x 26.0mm (excluding rear connectors) |
|---|
| Signal type | Composite Video (CVBS) |
|---|
| Supported formats | NTSC 720 x 480 / PAL 720 x 576 |
|---|
| Image manipulation | Mirror and rotation 0/90/180/270° |
|---|
| Dedicated power output | 12V / 500mA |
|---|
| CAN | Haltech, OBD-II, or supported third party ECU |
|---|
| USB | USB-A (laptop) to USB-C (dash) connection |
|---|
| Wi-Fi | Yes (2.4 GHz) |
|---|
| Operating Voltage | 6.5V to 20.0V |
|---|
| Ambient Temperature | -10°C (14°F) to +80°C (176°F) |
|---|
| Onboard Datalogging | 512MB |
|---|
| Odometer | 6 digits |
|---|
| IP Rating | IP64 (Dust-tight and protected against water splashes) |
|---|
| Shift Lights | 14 RGB |
|---|
| Connectors | 34 Pin AMP Superseal (Type 2 keyway) Female RP-SMA (Wi-Fi Antenna connection) |
|---|
| Connectors | 1 x M5 USB connector (COMMS) |
|---|
| Connectors | 1 x 34-pin Superseal (AUXILIARY) |
|---|
| Inputs and Outputs | 10 x Analog voltage inputs (AVIs) |
|---|
| Inputs and Outputs | 4 x Synchronized pulsed inputs (SPIs) |
|---|
| Inputs and Outputs | 4 x Digital pulsed outputs (DPOs) |
|---|
| Inputs and Outputs | 1 x 5V output, 1 x 12V output, and 1 x signal ground |
|---|
| Inputs and Outputs | Tachometer input pin (for wired tacho signal) |
|---|
| Inputs and Outputs | Alternator excite pin |
|---|
| Inputs and Outputs | 2 x Ambient light sensors (onboard) |
|---|
| Camera Input | Signal type: Composite Video (CVBS) |
|---|
| Camera Input | Supported formats: NTSC 720 x 480 / PAL 720 x 576 |
|---|
| Camera Input | Image manipulation: Mirror and rotation 0/90/180/270° |
|---|
| Camera Input | Dedicated power output: 12V / 500mA |
|---|
| Communications | CAN (Haltech, OBD-II, or supported third party ECU) |
|---|
| Communications | USB-A (laptop) to USB-C (dash) connection |
|---|
| Communications | Wi-Fi: 2.4 GHz |
|---|
