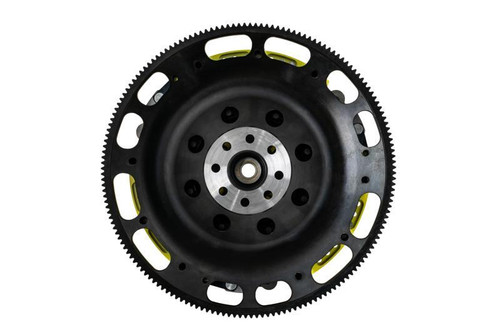

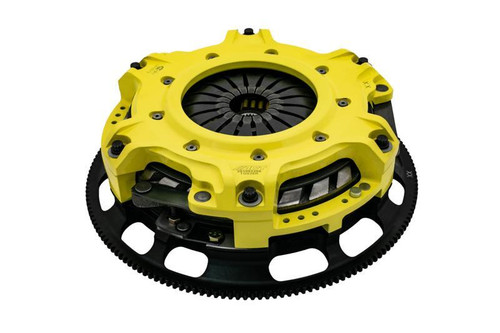

T3R-F12 Mod-Twin 10.5 XX Rigid Race Kit tackles aggressive launches and rapid shifting of high-powered machines by combining twice the ceramic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a consistent pedal feel requiring moderate effort. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive Chromoly hub, which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.
Features and Benefits
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Product Details
- Generic Primary
- Primary
- Primary
- Primary
- Primary
Part Number: actT3R-F12
Description: ACT 18-23 Ford Mustang GT 5.0L Mod-Twin 10.5 XX Rigid Race Clutch Kit
Product Weight (lbs.): 44.5
SFI: 1.2
Title: ACT Mod-Twin 10.5 XX Rigid Race
Torque Capacity (ft/lbs.): 1496
Torque Capacity Over OE: 147%
Flywheel Included: Yes
Pilot Bushing Included: No
Pressure Plate Type: Maxx Xtreme
Release Bearing Included: No
Clutch Disc Diameter: 267
Disc Material: Ceramic
Input Spline Quantity: 23
Input Shaft Diameter: 1
Alignment Tool Included: Yes
Grease Included: Yes
Flywheel Bolts Included: Yes
Pilot Bearing Included: Yes
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No: Yes
Prop 65 Long Label: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Disc Type Sprung Solid: Solid
Clutch Slave Cylinder Included: No
Clutch Master Cylinder Included: No
Grade Type: Performance
Pressure Plate Bolts Included: No
Fits: 2018-2023 Ford Mustang (see fitment details).
