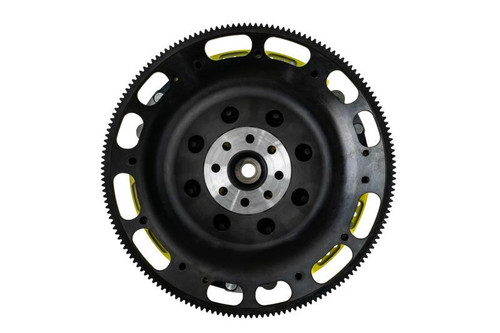

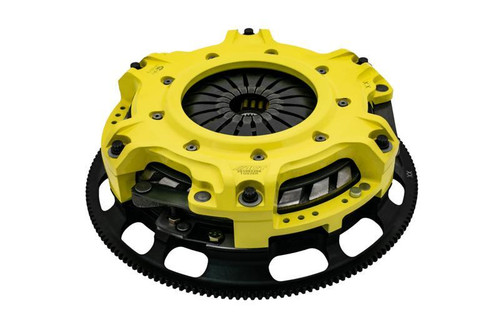

T3SS-F12 Mod-Twin 10.5 XX Sprung Street Kit is designed for high-powered street machines. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable sprung Mono-Drive hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly, which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, release bearing, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.
Features and Benefits
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Product Details
- Generic Primary
- Primary
- Primary
- Primary
- Primary
Part Number: actT3SS-F12
Description: ACT 18-23 Ford Mustang GT 5.0L Mod-Twin 10.5 XX Sprung Street Clutch Kit
Product Weight (lbs.): 45.4
SFI: 1.2
Title: ACT Mod-Twin 10.5 XX Sprung Street
Torque Capacity (ft/lbs.): 1169
Torque Capacity Over OE: 93%
Flywheel Included: Yes
Pilot Bushing Included: No
Pressure Plate Type: Maxx Xtreme
Release Bearing Included: No
Clutch Disc Diameter: 267
Disc Material: Organic
Input Spline Quantity: 23
Input Shaft Diameter: 1
Alignment Tool Included: Yes
Grease Included: Yes
Flywheel Bolts Included: Yes
Pilot Bearing Included: Yes
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No: Yes
Prop 65 Long Label: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Disc Type Sprung Solid: Sprung
Clutch Slave Cylinder Included: No
Clutch Master Cylinder Included: No
Grade Type: Performance
Pressure Plate Bolts Included: No
Fits: 2018-2023 Ford Mustang (see fitment details).
