P/N 17254: Carbureted Phantom 340 Kit

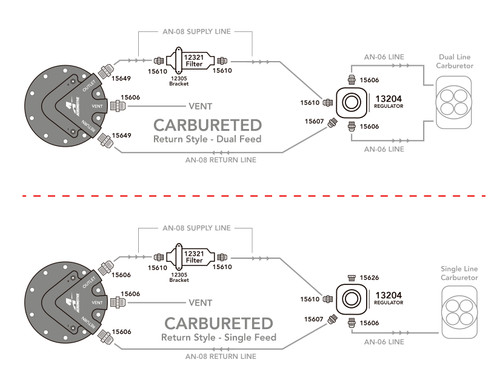

These new Phantom Carbureted Fuel Systems include all main fuel system components required to create a proper carbureted fuel system, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. Each system ships with the proper carbureted bypass fuel pressure regulator, high flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Ideal for naturally aspirated and blown, carbureted engines producing up to 900 plus flywheel Horse Power, on the street or at the track. AN-08 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.
This kit contains the following parts:
1ea p/n 18688 Phantom 340
1ea p/n 12321 Filter 10 micron Paper
1ea p/n 12305 Filter Bracket
1ea p/n 13204 Regulator, ByPass, Carb.
1ea p/n 16307 Fuel Pump Wiring Kit.
3 ea p/n 15606 AN-06 ORB to AN-06 flare
1 ea p/n 15607 AN-08 ORB to AN-08 flare
3 ea p/n 15610 AN-10 ORB to AN-08 flare
1ea p/n 15626 AN-06 Port Plug
2ea p/n 15649 AN-06 ORB to AN-08 flare
1 ea p/n 15632 0-15 PSI Pressure Gauge
