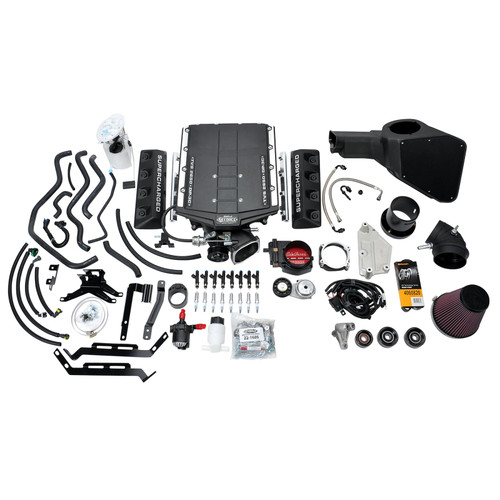

If you own a 2015-17 Mustang and want max performance from a bolt-on power adder; jump right into our Stage 2 Supercharger System W/O TUNER #158390 for the Gen 2 Ford 5.0L Coyote engine. This potent new kit adds huge gains in horsepower and torque over Stage 1 performance; all while maintaining emissions-legal status in all 50 states. At the heart of this system is the top-of-the-line R2650 TVS rotor assembly housed with an integrated high-capacity DP3C (dual-pass; three-core) air-to-water intercooler that lowers incoming air temperatures and increases power potential. To support the additional Stage 2 power increase; we?ve upgraded fuel system components in this kit to include larger 78 lb/hr direct-port injectors along with a drop-in 400 LPH fuel pump assembly with internal check valve. You?ll also get a dramatic increase in airflow over the Stage 1 kit from a new 103mm billet aluminum throttle body and high-flow air intake system with 113mm MAF housing. Like our Stage 1 kit for the Mustang; the Stage 2 System installs cleanly with no modifications to the hood or body and comes complete with all hardware; hoses and a handy full-color step-by-step instruction manual to streamline the installation process. This kit is backed by Edelbrock s industry-leading 3-Year/36;000-mile Powertrain Warranty. If you want this kit with a tuner order #15839.
Features and Benefits
- E-Force Stage-2 Supercharger System
Product Details
- Generic Primary
- Generic Primary
- Primary
- Primary
- Generic Primary
Part Number: ede158390
Description: E-Force Stage-2 Supercharger System
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
Vehicle Model: Mustang
9040: D-215-107
Air Filter Included: Yes
Calibration: No
Finish: Black Powder Coated
Fuel Injector Type: 78
Fuel Pump Included: Yes
Harmonic Balancer Diameter: 6.67
Hose Included: Yes
Outside Pulley Diameter: 3.25
Pulley Belt Width: 6-Rib
Quantity: Kit
Rotor Type: Eaton TVS 2650
Spark Plugs Included: Yes
System Type: Stage 2 - Street/Strip System
Internal Step Up: Yes
Mounting Bracket Included: Yes
Gasket Or Seal Included: Yes
Oil Capacity: 150
Housing Material: Cast Aluminum
Center Housing Cooling Type: Intercooler
Mounting Hardware Included: Yes
Universal Or Specific Fit: Specific
Fits: 2005-2020 Ford Mustang (see fitment details).
