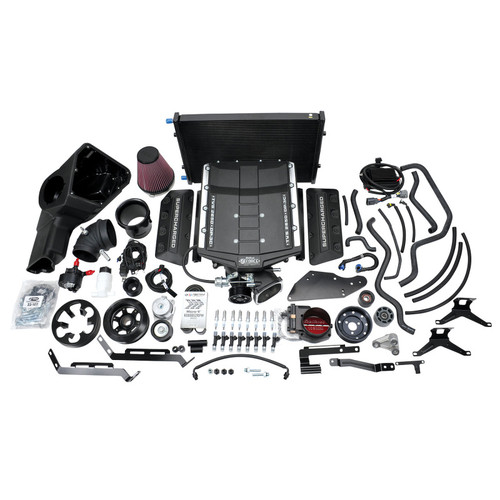

Edelbrock's highest horsepower 50-state legal supercharger system is now available for owners of late-model Ford Mustangs with the 5.0L engine. The new Edelbrock Stage II Supercharger W/O TUNER #153880 for the 2018-2020 Mustang is a complete kit that takes full advantage of the improved Gen 3 DI/PI Coyote engine. At the heart of this system is the highly efficient R2650 TVS rotor assembly with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler for lower inlet air temperatures and increased power potential. New 170-degree high-twist lobes, bigger bearings and beefier timing gears ensure unparalleled reliability with smooth acceleration throughout the powerband. To support the additional Stage II power increase, the fuel system components are upgraded to include larger 50 lb/hr direct-port fuel injectors along with a Fuel Pump Voltage Booster. A dramatic increase in airflow over the Stage I kit comes from a new 103mm billet aluminum throttle body (23mm larger than Stage I) and high-flow air intake system with 113mm MAF housing. Edelbrock's 8-Rib Drive Belt upgrade minimizes slippage to maintain consistent boost pressure under full throttle. Each supercharger comes finished with a durable black powder-coating that blends nicely into the Mustang engine compartment and includes a preformed hose kit, hardware and a full-color step-by-step instruction manual to streamline the installation process (Note: Kit #153880 does not include the handheld tuner). This is a true bolt-on that installs cleanly with no modifications to the hood or body. This potent Stage II system for the new Mustang is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty and is 50-state emissions legal.
Features and Benefits
- E-Force Stage II Supercharger Kit
Product Details
- Generic Primary
- Generic Primary
- Generic Primary
- Primary
- Primary
- Primary
- Primary
- Primary
- Generic Primary
Part Number: ede153880
Description: E-Force Stage II Supercharger Kit
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Vehicle Model: Mustang
Mounting Hardware Included: Yes
Mounting Bracket Included: Yes
Gasket Or Seal Included: Yes
Housing Material: Cast Aluminum
Center Housing Cooling Type: Intercooler
Universal Or Specific Fit: Specific
Oil Capacity: 150
Internal Step Up: Yes
Calibration: No
Finish: Black Powder Coated
Fuel Injector Type: 50
Fuel Pump Included: Yes
Harmonic Balancer Diameter: 7.75
Hose Included: Yes
Outside Pulley Diameter: 3.5
Pulley Belt Width: 8-Rib
Quantity: Kit
Rotor Type: Eaton TVS 2650
Spark Plugs Included: Yes
System Type: Stage 2 - Street/Strip System
Air Filter Included: Yes
E.O.: D-215-122
Fits: 2018-2021 Ford Mustang (see fitment details).
