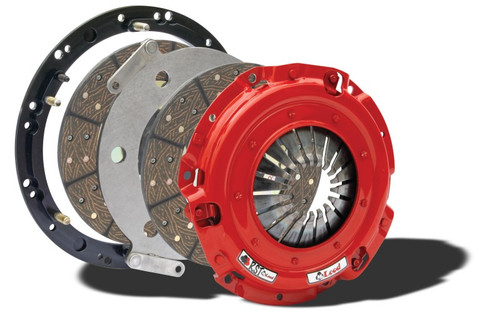

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Features and Benefits
- • Lighter than Stock Pedal Feel. • Organic Facings for Smooth Engagement. • Excellent Release Qualities. • Bolts to Most Flywheels. • Available with Aluminum or Steel Flywheel.
Product Details
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
Part Number: mlr6912-25
Description: RST CLUTCH, 2011-2015 MUSTANG GT 1" X 23 METRIC SPLINE
Alignment Tool Included: Yes
Clutch Patterns: 12" LS1 Diaphragm Metric Bolts with Dowel Pin
Clutch Usage: Street
Disc Diameter: 9-11/16"
Disc Material: Organic
Disc Style: Solid Hub
Engine: 1996-2014 4.6L/5.0L/5.4L 8 Bolt Crank
Flywheel Fitment: Fits 168 Tooth Flywheel
Flywheel Included: No
Hardware Included: Yes
Horsepower Rating: 800
Hub Style: Solid
Make: Ford
Number of Discs: Double
Pilot Bushing Included: No
Pilot Bushing Material: N/A
Pressure Plate Style: Diaphragm
Spline: 1" x 23
Stock Disc Size: 11"
Throwout Bearing Included: No
Throwout Bearing Style: Standard
Engine: 2011-2017 5.0L Coyote 8 Bolt Crank
Clutch Patterns: 11" Mustang with Dowel Pin Holes 2000 and up
Flywheel Fitment: Fits 164 Tooth Flywheel
Stock Disc Size: 11In.
Spline: 1In. x 23
Clutch Patterns: 11In. Mustang with Dowel Pin Holes 2000 and up
Disc Diameter: 9-11/16In.
NOTE:: This clutch will not bolt up to the OEM flywheel with factory 9 bolt pressure plate pattern. Please call McLeod Tech for recommendation (714) 630-2764.
NOTE 2:: This clutch will not fit on flywheels with crank relief larger than 6.250In. in diameter. Please call McLeod Tech for recommendation (714) 630-2764.
Clutch Patterns: 11" GM LS-X With Dowel Pin; 11" Ford Modular with Dowel Pins
Disc Style: Full face
Clutch Usage: Performance/Street
Input Spline Quantity: 23M
Quantity: Sold as a kit.
Clutch Disc Quantity: 2
Disc Diameter (in.): 9-11/16"
Input Shaft Diameter (in.): 1"
Notes: Crank relief diameter must be 6.250" or smaller for proper disc-to-flywheel contact. Not compatible with factory flywheels using the 9-bolt pressure plate pattern. Requires an aftermarket flywheel.
Rebuild Service Available: Yes
Transmission: MT82 - 1 x 23M spline
Fits: 2011-2017 Ford Mustang (see fitment details).
