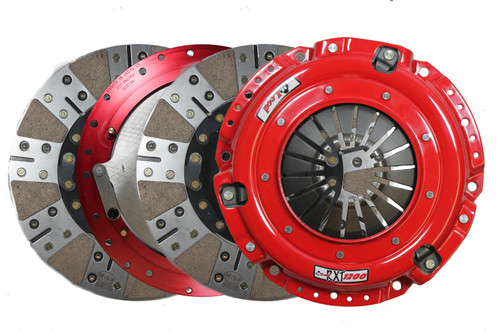

Intended for the high horsepower street/strip fan, the McLeod RXT 1200 street twin clutch kit is able to handle 1200hp. This clutch can handle almost any horsepower you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street/strip enthusiast. . This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT 1200 is what you’ll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Features and Benefits
- •Higher clamp load pressure plate •Ceramic friction discs •Bolts to most flywheels •Available with aluminum or steel flywheel •Strap drive
Product Details
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
Part Number: mlr6932-25HD
Description: RXT 1200, MUSTANG 1" X 23 METRIC SPLINE
Alignment Tool Included: Yes
Make: Ford
Throwout Bearing Included: No
Stock Disc Size: 11"
Spline: 1" x 23
Pressure Plate Style: Diaphragm
Pilot Bushing Material: N/A
Pilot Bushing Included: No
Number of Discs: Double
Hub Style: Solid
Clutch Patterns: 11" Mustang with Dowel Pin Holes 2000 and up
Horsepower Rating: 1200
Hardware Included: Yes
Flywheel Included: No
Engine: 1996-2016 4.6L/5.0L/5.4L 8 Bolt Crank
Disc Style: Full Face/Multi Pad
Disc Material: Ceramic
Disc Diameter: 9-11/16"
Clutch Usage: Street/Track
Throwout Bearing Style: Standard
Stock Disc Size: 11In.
Spline: 1In. x 23
Clutch Patterns: 11In. Mustang with Dowel Pin Holes 2000 and up
Disc Diameter: 9-11/16In.
Clutch Patterns: 11" GM LS-X With Dowel Pin; 11" Ford Modular with Dowel Pins
Horsepower Rating: 1300
Disc Style: Segmented
Clutch Usage: Performance/Street/Track
Quantity: Sold as a kit.
Clutch Disc Quantity: 2
Disc Diameter (in.): 9-11/16"
Input Spline Quantity: 23M
Input Shaft Diameter (in.): 1"
Notes: Crank relief diameter must be 6.250" or smaller for proper disc-to-flywheel contact. Not compatible with factory flywheels using the 9-bolt pressure plate pattern. Requires an aftermarket flywheel.
Rebuild Service Available: Yes
Transmission: MT82 - 1 x 23M spline
Fits: 2011-2017 Ford Mustang (see fitment details).
