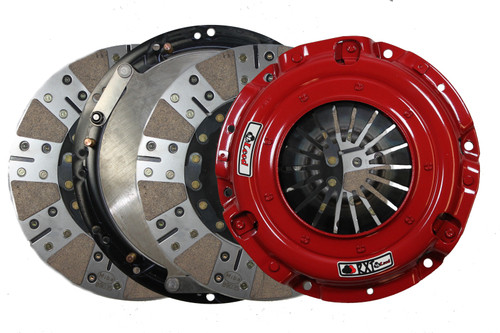

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT is what you’ll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars
Features and Benefits
- •Lighter than stock pedal feel •Ceramic friction discs •Bolts to most flywheels •Available with aluminum or steel flywheel •Strap drive
Product Details
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
- Generic Primary
Part Number: mlr6932-25
Description: RXT CLUTCH, MUSTANG 1" X 23 METRIC SPLINE
Alignment Tool Included: Yes
Clutch Patterns: 12" LS1 Diaphragm Metric Bolts with Dowel Pin
Clutch Usage: Street/Track
Disc Diameter: 9-11/16"
Disc Material: Ceramic
Disc Style: Solid Hub
Engine: 1996-2014 4.6L/5.0L/5.4L 8 Bolt Crank
Flywheel Included: No
Hardware Included: Yes
Horsepower Rating: 1000
Hub Style: Solid
Make: Ford
Number of Discs: Double
Pilot Bushing Included: No
Pilot Bushing Material: N/A
Pressure Plate Style: Diaphragm
Spline: 1" x 23
Stock Disc Size: 11"
Throwout Bearing Included: No
Throwout Bearing Style: Standard
Clutch Patterns: 11" Mustang with Dowel Pin Holes 2000 and up
Engine: 1996-2016 4.6L/5.0L/5.4L 8 Bolt Crank
Disc Style: Full Face/Multi Pad
Stock Disc Size: 11In.
Spline: 1In. x 23 Metric
Clutch Patterns: 11In. Mustang with Dowel Pin Holes 2000 and up
Engine: 2011-2017 5.0L Coyote
Disc Diameter: 9-11/16In.
NOTE:: This clutch will not bolt up to the OEM flywheel with factory 9 bolt pressure plate pattern. Please call McLeod Tech for recommendation (714) 630-2764.
NOTE 2:: This clutch will not fit on flywheels with crank relief larger than 6.250In. in diameter. Please call McLeod Tech for recommendation (714) 630-2764
Clutch Patterns: 11" GM LS-X With Dowel Pin; 11" Ford Modular with Dowel Pins
Horsepower Rating: 1100
Disc Style: Segmented
Clutch Usage: Performance/Street/Track
Clutch Disc Quantity: 2
Disc Diameter (in.): 9-11/16"
Input Spline Quantity: 23M
Quantity: Sold as a kit.
Input Shaft Diameter (in.): 1"
Notes: For use with Ford Modular/GM LS-X flywheel - Metric Ring
Rebuild Service Available: Yes
Fits: 2011-2017 Ford Mustang (see fitment details).
